Description

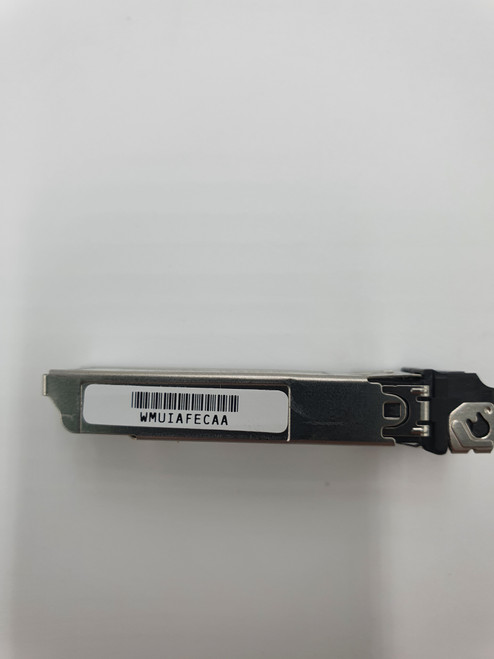

The Alcatel-Lucent 1AB194670007 is an Optical SFP S-1.1 DDM transceiver designed for STM-1 optical transmission applications. Alcatel-Lucent documentation identifies this part number as an SFP plug-in STM-1 S1.1, intended for installation in the STM-1 Access Card. It is associated with Alcatel-Lucent optical transmission platforms, including the 1660SM and 9500 MPR equipment families.
The transceiver provides a 155 Mb/s-class optical interface over single-mode fiber, using a nominal 1310 nm wavelength. Available technical documentation for this exact part-number family identifies the S-1.1 configuration with up to 15 km transmission over 9/125 µm single-mode fiber, duplex LC optical connectivity, and integrated Digital Diagnostics Monitoring (DDM).
The SFP uses a hot-pluggable form factor and is designed for integration into compatible Alcatel-Lucent STM-1 equipment. Its operating temperature specification is -40°C to +85°C, making it suitable for extended-temperature telecom applications.
Key Features
- Alcatel-Lucent optical SFP transceiver
- Part Number: 1AB194670007
- STM-1 S-1.1 optical interface
- Optical transmission rate up to approximately 155 Mb/s
- Nominal 1310 nm operating wavelength
- Designed for single-mode fiber
- Transmission distance up to 15 km
- Duplex LC optical connector
- Integrated Digital Diagnostics Monitoring (DDM)
- Hot-pluggable SFP form factor
- 3.3 V single power supply
- Extended operating temperature: -40°C to +85°C
- Suitable for Alcatel-Lucent optical transmission equipment
- Used as an option in the STM-1 Access Card
Technical Specs
Manufacturer: Alcatel / Alcatel-Lucent
Part Number: 1AB194670007
Product Type: Optical SFP Transceiver
Transceiver Type: STM-1 S-1.1
Application: SDH / SONET optical transmission
Data Rate: Approximately 155 Mb/s
Optical Wavelength: 1310 nm
Fiber Type: Single-mode fiber (SMF)
Maximum Distance: Up to 15 km
Optical Connector: Duplex LC
Diagnostics: Digital Diagnostics Monitoring (DDM)
Form Factor: SFP, hot-pluggable
Power Supply: 3.3 V DC
Operating Temperature: -40°C to +85°C
Installation: STM-1 Access Card SFP plug-in
Compatible Equipment: Alcatel-Lucent STM-1 optical transmission platforms, including compatible 1660SM / 9500 MPR configurations
